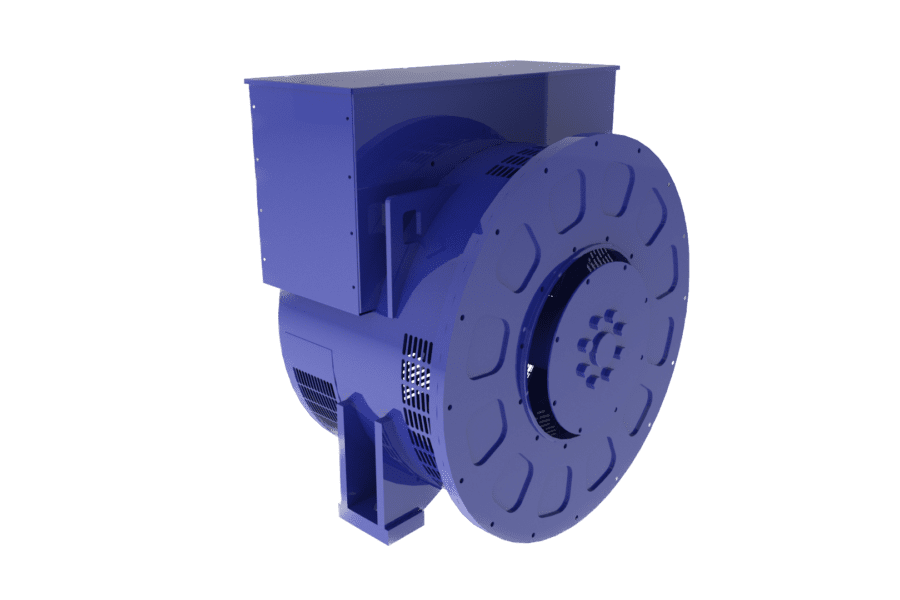

SMC Alternators the compact alternator line-up of Sinocox
Application and Standards
The Sinocox SMC compact alternator line-up can be widely used for homes, small shops and offices as a prime power supply or back-up alternator. Especially for short length requested applications, the SMC might be a good solution. The SMC alternators comply with standards of IEC60034, NEMA MG1-22, IS08528, CSA C22.2-100 VDE 0530 GB755
Electrical Features
The high efficiency semiconductors of the AVR ensure positive build-up from initial low levels of residual voltage. The 2/3 winding pitch, effective control of harmonics. 12 leads, achieve a variety of voltage output High efficiency and strong motor start abilities. Be capable of running at overload up to 10% for 1 hour every 12 hours. The "AWES" - Auxiliary Winding Excitation System is optional.
Mechanical features
Be protected to IP23, and IP44 is optional. Sealed for life bearings are standard. The Diode Module is located on back for easily replace. This alternator contains a steel sheet terminal box, which provides enough space for customer's reconnection. The rotor is dynamically balanced according to ISO 1940. A half-key balanced for double bearings. The VPI (Vacuum Pressure Impregnation) equipped to ensure the electrical insulation and mechanical strength. The "Anti-Harsh" winding is optional to meet the needs of harsh environment.
Parameters
| Insulation class | H |
|---|---|
| Phases | 3 |
| Protection class IP | IP23 |
| Overspeed | 2250rpm |
| Attitude | <=1000m |
| Leads | 12 |
| Pitch | 2/3 |
| Type AVR | SX460 |
* Make sure your check the drawing and catalog on all specifications and dimensions.
* All prices are excluding VAT and transportation.
