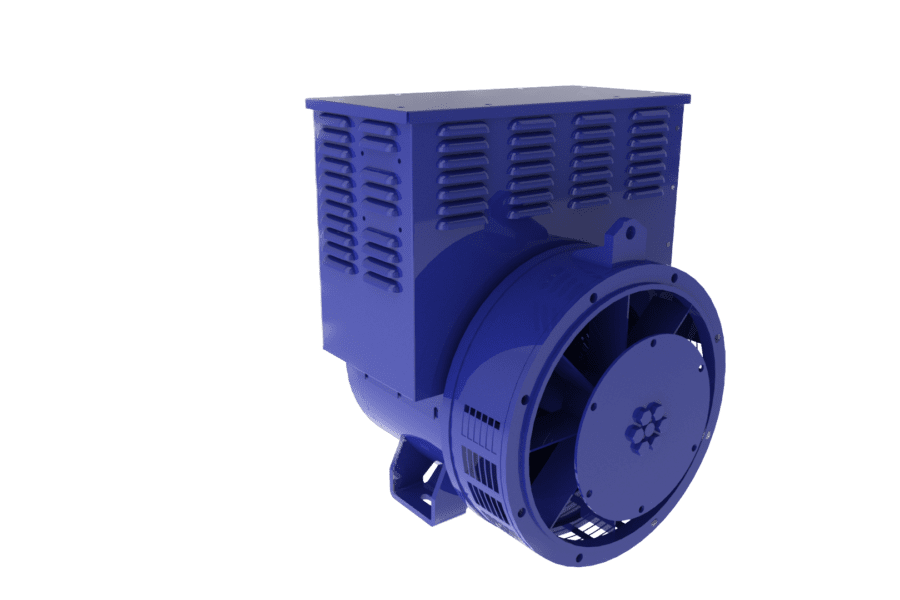

Sinocox SMD

To order an alternator, you'll need to login first. Login (or request an account).

sinocox-smd

Application and Standards

The SINOCOX SMD line-up is a DC alternator range. The SMD is designed to be applicable for telecom and lighting tower(LED). This alternator range comply with standards of IEC60034,NEMA MG1-32,IS08528,CSA C22.2-100, VDE 0530๏ผŒand GB755.

Electrical Features

H class insulation The DC output voltage is 48V/24V DC, and can be up to 60V/30V DC The voltage ripple = <1%

Mechanical features

Be protected up to IP23. These alternators are available as single bearing configurations. SINOCOX uses sealed for life bearings. Did you know that SINOCOX used an aluminum front and rear bracket on this model to reduce weight? The rotors are dynamically balanced according to ISO 1940.

Parameters

Insulation class H
Protection class IP IP23
Overspeed 2500rpm
Attitude <=1000m
Leads 2
Type AVR VR303/ VR307, VR309

Downloads

Some additional downloads (for example drawings and the catalog) may be available after configuring your alternator.

Drawing Catalog STEP file

Configure your alternator

Sinocox SMD - DC

Reset filters

Voltage

Select voltage

Power usage

Power

Select value

Frequency

Phases

Speed

Select speed

Bearing

Protection class IP

Frame size

Select frame size

SAE flange size

Select SAE flange size

Flange

A flange is required

Coupling Disc

A coupling disc is required

Select coupling disc

Additional products

Your order

Sinocox SMD

To order this alternator, you'll need to login first.

Login Complete order

* Make sure your check the drawing and catalog on all specifications and dimensions.

* All prices are excluding VAT and transportation.
